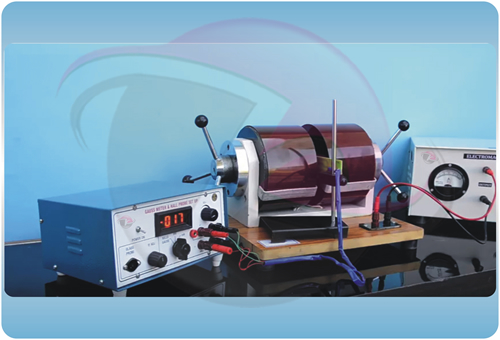

Hall Effect Setup
Hall Effect Setup
If an electric current flows through a conductor in a magnetic field, the magnetic field exerts a transverse force on the moving charge carriers, which tends to push them to one side of the conductor, producing a measurable voltage between two sides of the conductor, this voltage is Hall Voltage. Through Hall Effect Setup we can determine carrier density, the mobility of charge carrier, Hall coefficient, Hall voltage etc. We can study the effect of temperature in semiconductor, relation between magnetic field and Hall voltage.
Scope of Learning
1. Calculate the mobility of charge carrier particles.
2. Study the Hall voltage as a function of current at constant magnetic field.
3. Study the dependence of Hall effect coefficient on temperature.
4. Study of Hall voltage as a function of magnetic field at constant current.
5. Measurement of Hall voltage.
6. Calculate the charge carrier concentration density of semiconductor crystal.
7. Calculate the Hall coefficient of Ge 'p' type crystal.
8. Measure the magnetic field by Gauss and Tesla meter.
9. Find the poles of an electromagnet with the help of Hall probe and gauss meter.
