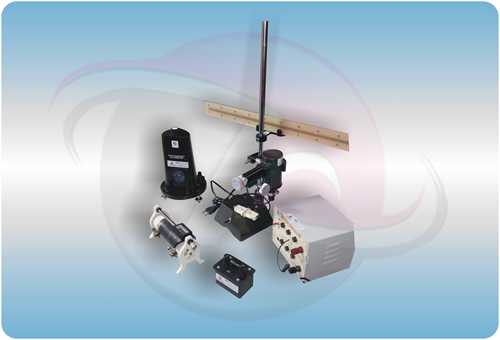

Ballistic Galvanometer Setup illustrates fundamental information about electromagnetic induction. It concerns "how electric field affects magnetic field and also reveals the mechanism of current sensing devices". Ballistic Galvanometer Setup enables not only the detection of weak electric field but also measures it very precisely . Ballistic power supply is included with setup, in which we can generate very weak ambient electric field and can reveal this effect to the Ballistic Galvanometer as a detected deflection of coil. Lamp and scale arrangement is included for measurement of deflection.
Power supply for Ballistic Galvanometer
Moving coil with large moment of inertia
Flexible phosphor-bronze ribbon suspension
Lamp and scale arrangement with adjustable stand
Deflection measurement scale
e-Manual
List of Accessories
1 Ballistic galvanometer
1 Ballistic galvanometer power supply
1 Lamp and scale (30 to 30cm) Arrangement
1 Mains cord
6 Patch cord 8"
4 Patch cord(4 to 2 mm) 24"
Scope of Learning
1. Determination of ballistic constant by steady deflection method.
2. Determination of charge sensitivity of a moving coil ballistic galvanometer using a known capacitor.
3. Comparison of the capacitance of two condensers using ballistic galvanometer.
4. To find the logarithmic decrement for a ballistic galvanometer.
